Snapper M1227E (1695908) - 27" Snowthrower, 11.5 HP, Two Stage, Intermediate Frame Engine & Frame Group Ricambi

Name: LEITSCHRAUBE ML-STD HDL
Price: 79.07 EUR

LEITSCHRAUBE ML-STD HDL

Articolo numero:

BS1501226YZMA

Posizione:

0230

79.07 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

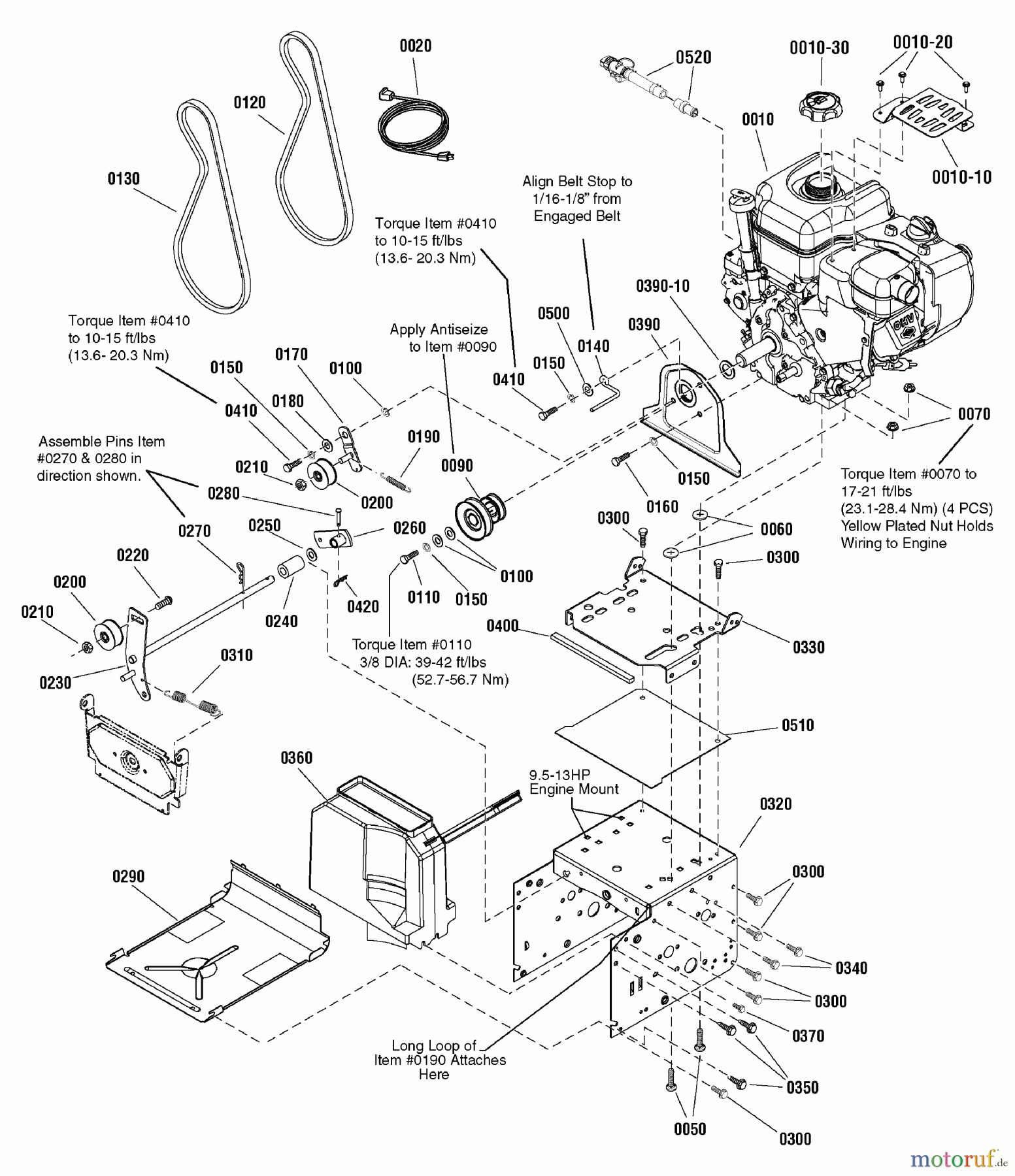

Posizione	Articolo numero	Descrizione
0010	BS15C114-0131-E8
0010-10	BS797003	SCHALLDAMPFERSCHUTZ
0010-20	BS699854	SCHRAUBE
0010-30	BS795027	TANKDECKEL
0020	BS6219MA	CORD, STARTER MOTOR
0050	BS1501884E701MA	CHUTE ASSY AND GUARD
0060	BS028X76MA	SCHNELLMUTTER
0070	BS703115	MUTTER
0090	BS1501109MA	PULLEY,ENGINE
0100	BS703298	U-SCHEIBE, GR5, 5/16
0110	BS1921982SM
0120	BS1733324SM	BELT, DRIVE
0130	BS585416MA	BELT
0150	BS703116	LCKWSHR
0160	BS1921515SM	BOLT
0170	BS1501112YZMA	LEITKONSOLE ASY,ANTRIEBSRIEMEN
0180	BS1501065MA	BUCHSE,LEITKONSOLE
0190	BS165X164MA	SPRING,EXT IDLER 8-13
0200	BS1502120MA	UMLENKROLLE
0210	BS1960251SM	MUTTER
0220	BS703227	BOLZEN, 3/8-16 X 1.25
0230	BS1501226YZMA	LEITSCHRAUBE ML-STD HDL
0240	BS1501200MA	DISTANZSTUCK/SCHRAUBE KONSOLE
0250	BS1960027SM	ABZIEHER-SCHEIBE
0260	BS1733451SM	ARM - CONTROL
0270	BS725367
0280	BS703313	PIN, CLEVIS, ZINC
0290	BS1740906BZYP	PANEL, BOTTOM
0300	BS1927429SM	SCREW - HEX WASHER HD
0310	BS165X159MA	ZUG-; SPANNFEDER
0320	BS1740572DYP	RAHMEN BOX
0330	BS1733583DSM	PLATE-ENGINE MOUNT 11
0340	BS25X020MA	SCHRAUBE.31-18X0.50 WAHH
0350	BS703228	SCHRAUBE, 5/16-18 X .75
0360	BS1733923SM	COVER-BELT W/TOOLBOX
0370	BS26X306MA	SCREW.25-ABX0.75 HEX
0390	BS1733868BZYP	PLATE, SEAL, BLACK
0390-10	BS1733898SM	SEAL-FOAM 1.30ID 2.00
0500	BS703302	U-SCHEIBE, 5/16
0510	BS1750135YP	DICHTUNG, MOTORPLATTE
0520	BS798980	OELSCHLAUCH
