Murray 309311x92A - B&S/ 30" Rear Engine Rider (2003) (Walmart) Motion Drive Pièces détachées

Motion Drive 309311x92A - B&S/Murray 30" Rear Engine Rider (2003) (Walmart)

Murray Reitermäher 309311x92A - B&S/Murray 30

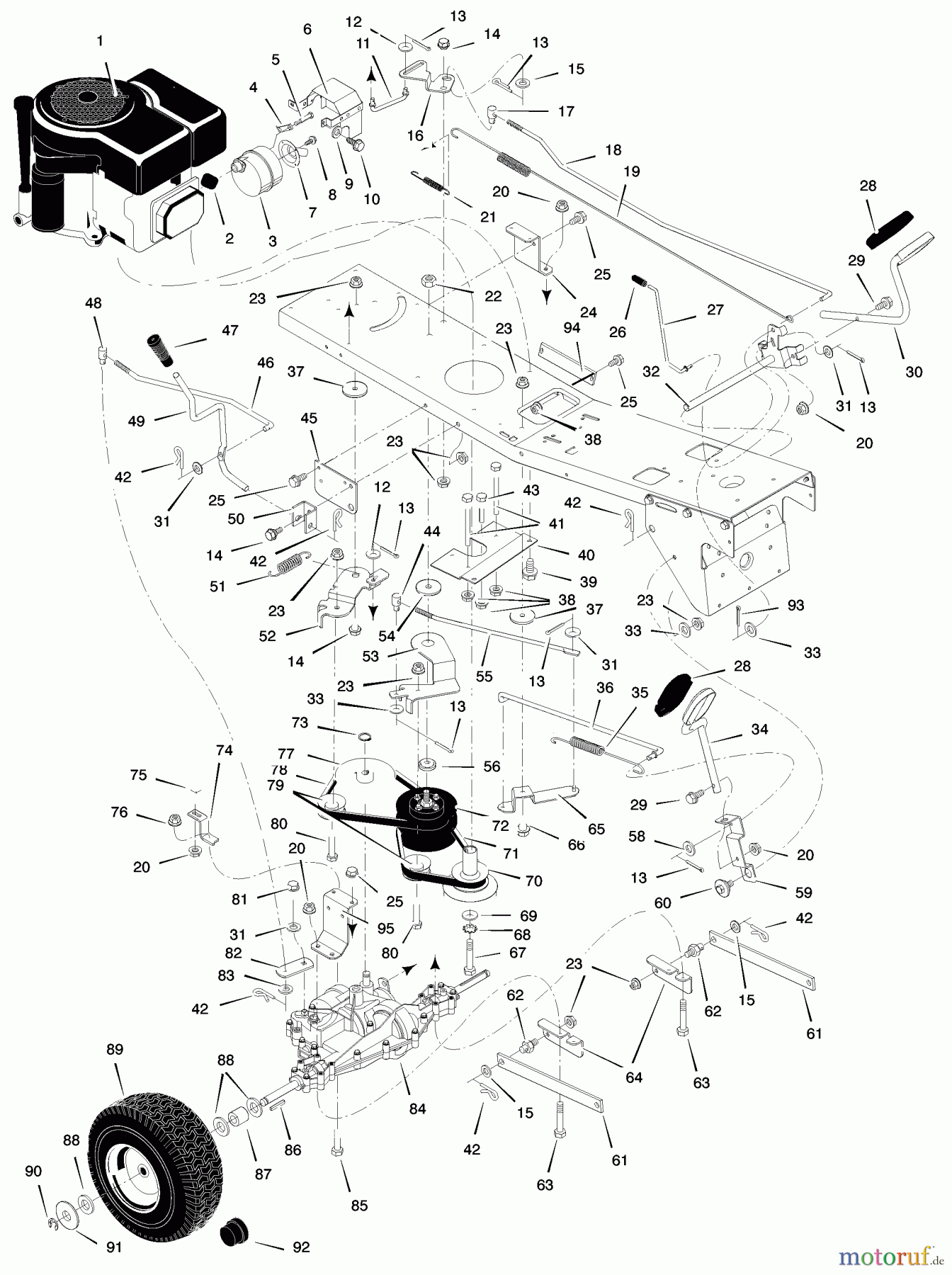

Vous trouverez ici le dessin de la pièce de rechange pour Murray Reitermäher 309311x92A - B&S/Murray 30" Rear Engine Rider (2003) (Walmart) Motion Drive. Sélectionnez la pièce de rechange requise dans la liste des pièces de rechange de votre appareil Murray Reitermäher 309311x92A - B&S/Murray 30" Rear Engine Rider (2003) (Walmart) Motion Drive et commandez simplement en ligne. De nombreuses pièces de rechange Murray nous gardons en permanence dans notre entrepôt pour vous.

Pos.Numéro d'articleDescription
1 BSEingangswelle UE 600
2 BS692236AUSPUFFDICHTUNG
3 BS091271SEMASCHALLDARMPFER 12HP B&S
4 BS092378MASCHRAUBENVERSCHLUSS 223016
5 BS01X134MABOLT-HEX.31-18X4.12 O
6 BS1401207
7 BS1401204MAABGASROHR B & S KOMPL.
8 BS26X208MAGEWINDESCHRAUBE-.375-B
9 BS018X32MAWASHER.25.48X.07 SPLI
10 BS0025X2MASCREW-TRI.25-20X .50
11 BS1401170MAHANDGRIFF HEBEL
12 BS017X45MAWASHER,FLAT .33 1. 16
13 BS030X20MAPIN-COTTER.09D-.750L
14 BS009X39MAANSATZBOLZEN .38-16 X .
15 BS17X102MAUNTERLEGSCHEIBE-MAHER
16 BS1401166 Z
17 BS092132ZMAEINSTELLMUTTER
18 BS1401165MAKUPPLUNGSGESTANGE VARIATOR
19 BS165X148MAFEDERHEBEL
20 Murray NUT,CENTERLOCK Z .3BS015X88MANUT,CENTERLOCK Z .3
21 BS165X75MASPRING,EXTENSION
22 BS15X137
23 BS015X84MAMUTTER, CENTERLOCK .38-
24 BS1401042E701MAHALTER, STUFENLOSES GETRIEBE,
25 BS26X249MASCREW-.312-18X.75
26 BS091079MAGRIP-BLACK .207 ID X
27 BS1401112MAGRIFF, FESTSTELLBREMSE
28 BS1401139
29 BS01X139MABOLT-HEX.31-18X1.25 Z
30 BS1401179E701
31 BS017X38MAUNTERLEGSCHEIBE.26.75 16G FLT
32 BS1401180E701MAC/B ZAPFEN PIVOT STANGE ASSY
33 BS017X53MAWASHER.41.82 16G FLT
34 BS1401181E701MAPEDALGESTANGE
35 BS165X158MASPRING, EXT. RETURN
36 BS1401142MAGESTAENGE
37 BS17X174ZMAWASHER.40-2.2-.11 FL
38 BS015X79MANUT.31-18 FLANGELOCK
39 BS0025X7MAMOTORBOLZEN 3/8 X 1.25
40 BS1401057E701MABLECH, RIEMENFUHRUNG
41 BS1401105MAGUIDE, BELT LONG
42 BS0031X4MAPIN, HAIR .56D - .09
43 BS1401104MAFUHRUNG ANTRIEBSRIEMEN KURZ
44 BS021920ZMAJUSTIERMUTTER
45 BS1401032E701MABRACKET, LIFT PIVOT
46 BS1401122MALINK, DRIVE
47 BS092697MAGRIP - .50 ID - BLACK
48 BS1401148ZMAEINSTELLMUTTER
49 BS1401111MASCHALTHEBEL
50 BS1401043E701MAHALTER ABDECKUNG
51 BS165X156MASPRING, DRIVE EXT VAR
52 BS1401131 Z
53 BS1401132ZMAUMLENKARM KUPPLUNG
54 BS17X210HTMADICHTSCHEIBE
55 BS1401136MAVERBINDUNG -ANTRIEB
56 BS1401124MADISTANZSTUCK,SCHULTER
58 BS017X53MAWASHER.41.82 16G FLT
59 BS1401254ZMAARM - PEDAL
60 BS009X69MAANSATZ-/SCHULTERBOLZEN
61 BS1401031E701MAARM HINTEN; RUCKARM
62 BS094067MAANSATZGEWINDESTIFT
63 BS01X155MABOLT-HEX.31-18X2.50 P
64 BS1401039E701MAHALTERUNG/KONSOLE, HINTEN HANG
65 BS1401183E701
66 BS009X15MABOLT,SHD .38-16X .499
67 BS01X140MASECHSKANTBOLZEN.43-20X1.50 Z
68 BS019X35MAWASHER.43-0.74 X.04 S
69 BS17X170MAWASHER.46.97.25 FLAT
70 BS1401158MASTAPELRIEMENSCHEIBE
71 BS37X114MABELT, PRIMARY DRIVE
72 BS1001133MAVARIATOR ASSY
73 BS0011X7MASPRENGRING/SEEGERRING.625D.035
74 BS1401051E701MAKONSOLE,DREHMOMENT REACTO
75 BS002X53MABOLT,CRG .31-18 X 0.
76 BS015X43MANUT .31-18 ST OVERLOC
77 BS1401157MARIEMENSCHEIBE, HINTERACHSE
78 BS37X115MABELT, SECONDARY
79 BS1401156MAPULLEY, IDLER
80 BS01X111MABOLT-HEX.37-16X1.50 Z
81 BS06X105MACAP SCREW 1/4-28 (AR
82 BS1401093ZMABUGEL
83 BS17X148MAUNTERLEGSCHEIBE.38 SQ 1. 16G F
84 BS915-033
85 BS01X120MABOLT-HEX.31-18X2.00 Z
86 BS056534MAVIERKANTSCHLUSSEL
87 BS1401103MASPACER, TRANSAXLE
88 BS17X160MAWASHER.76-1.2 16G FL
89 BS1401120MAHINTERRAD 15"
90 BS0011X3MARING,E .750D .050T
91 BS17X195MAUNTERLEGSCHEIBE
92 Murray HUB CAPBS094618MAHUB CAP
93 BS030X35MASPLINT.13D-.880L
94 BS1401260E701MAVERSTARKUNGSBLECH
95 BS1401268E701MABRACKET, LH - TRANSAX
